Caries Detector LED Curing Light

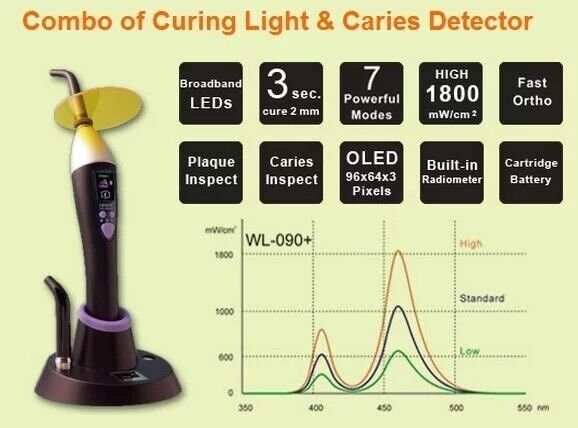

LED Curing Light and Caries Detector WL-90 Plus

• Radiant intensity Up to 1800 mW/cm2
• Color: Black only
• LEDs type: 10 watt violet & blue LEDs
• LEDs wavelength: 390 ~ 480 nm, peck: 405, 460 nm
• Efficient optics: Up to cure resin 2 mm in 3 seconds – High mode
• Handpiece size Ø 38 mm – max. x L190 mm
• Handpiece weight 180 g
• Cradle size Ø 115 mm – max. x H68 mm
• Battery type Lithium-ion, 3.7 V, 2500mAh
• Battery charge time Approx. 2.5 hours
• Operating time 720 times in 10 seconds standard mode
• Power supply Input: 100 ~ 240 V, 50/60 Hz, output: DC 5 V / 1.2 A

7 powerful extensive modes: OLED display, turbo light guide rod, 7 modes including Low, Ramp, Standard, High, Fast Ortho, Plaque Inspect, Caries Inspect

Broadband LEDs used: Use broadband LEDs , wide wavelength output is more fitting to phenyl propanedione – PPD and Lucirin TPO photoinitiator.

3 sec. fast cure: Use high power 10W broadband LEDs, up to 1800 mW/cm, it can cure the composites over 2 mm in 3 sec.

Plaque Inspect & Caries Inspect: Use *FIND optical filter, it can detect dental plaque, caries easy and clearly

Never Shutdown within continuous use: Smart heat-management system prevents device overheating during continuous use

Built-in radiometer: OLED display, easy to check intensity

Cartridge battery: Use cartridge design, easy to change battery

LOW mode: Ideal for curing bonding material that is between tooth and composite resin.

RAMP mode: Ideal for curing the wide area of composite resin, it can avoid shrinkage.

STANDARD mode: It is a stable output, ideal for most cases.

HIGH mode: Ideal for orthodontic, pediatric dentistry, or such as dental cement, porcelain veneer,fiber post in endodontic fields. It can save time.

FAST ORTHO mode: Ideal for orthodontics, it is easy to bond materials and saving time.

Plaque Inspect: Ideal for plaque inspect, it is an easy way to check plaque on the anterior.

Caries Inspect: Ideal for caries inspect, it is an easy way to check caries on the posterior.
